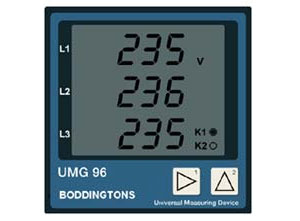

UMG96 Universal Measuring Device
amazingly low list price
kWh and kVArh transistor pulse output included
min/max/average values - see table below
size 96 x 96mm
total depth including terminals 48mm
|
|
|
Quantity to
be measured
|
Indication
|
Measuring range
at scale factor 1
|
l.1
|
l.2
|
l.3
|
Sum
|
Mean
Value
|
Measuring
Accuracy
|
| Current..1/5A L1-L3 |
0,00..9,99 KA |
0,01..1/5 A |
 |
|
|
|
|
+-1 % Mr |
| Current..1/5A N |
0,00..9,99 kA |
0,03..1/1 A |
|
|
|
|
|
+-3 % Mr |
| Voltage L-N |
0,0..999 V..99,9 kV |
196..275 V AC |
|
|
|
|
|
+-1 % Mr |
| Voltage L-L |
0,0..999 V..99,9 kV |
340..475V AC |
|
|
|
|
|
+-2 % Mr |
| Frequency (U) |
45..65 Hz |
45..65 Hz |
|
|
|
|
|
+-1,5 % Mv |
| Real power +/- |
0,00 W..999 MW |
2 W..2,5 kW |
|
|
|
|
|
+-1,5 %Mr |
| Apparent power |
0,00 VA..999 MVA |
2 VA..2,5 kVA |
|
|
|
|
|
+-1,5 % Mr |
| Reactive power |
0,00 kvar..999 MVAr |
2 var..2,5 kvar |
|
|
|
|
|
+-1,5 % Mr |
| Power factor |
0,00 cap..1,00..0,00 ind. |
0,00 cap..1,00..0,00 ind. |
|
|
|
|
|
+-1,5 % Mr |
| Active Power |
0 Wh…999.999.999 Wh |
|
|
|
|
|
|
+-2,0 % Mr |
| Reactive Power |
0 varh..999.999.999 varh |
|
|
|
|
|
|
+-2,0 % Mr |
|
|
Mr: of measuring range, Mv: of measured value
*Integration over time: 5, 15, 30, 60, 300, 480, 600 and 900 seconds
|
|
